Wandy 2R-i or 2APi

The Wandy® 2R-i or 2APi unit is one of our most populair client devices. It's routing functions make this unit one of it's kind. The great quality and the endless posibilities together with it's low price make this unit for the competitors impossible to beat.
Installation is made very simple with the unit it's patented Wandy® graphical web interface, this makes access through your web browser possible. The unit has built-in security options these are also accessable through the web interface.
Almost everything you want to know about this unit is explained step-by-step in the unit it's complete user manual, which is supplied with the Wandy® 2R-i/2APi.
If you have any questions about this product, do not hesitate to call or email us.

Specifications
Frequency Range 2.4 GHZ – 2.485 GHz   IEEE Standard Compliance IEEE 802.11b 2.4GHz OFDM
IEEE 802.11g 2.4GHz CCK
OS Linux with 2.4.18 kernel   Channel Support ETSI: 13 channels
Data Rate

802.11b: 11 / 5,5 / 2 / 1 Mbps
802.11g: 54 / 48 / 36 / 24 / 12 / 9 / 6 Mbps

   RF output power stepping 802.11b: 100 , 150 , 200 , 250 mW
802.11g: 50 , 100 mW
Sensitivity 802.11g: -76 +/- 2dBm @ 54Mbps
802.11b: -86 +/- 2dBm @ 11Mbps		   Output power 200mW @ 11Mbit 802.11b
100mW @ 54Mbit 802.11g
Operating mode AP client with routing function (WISP mode)
Wireless access point
AP client (Wifi to Ethernet bridge)
WDS (Wireless repeater; P –to- P, P –to- MP bridge)
Wireless router		   Power Wandy unit Power over Ethernet
Antenna gain 3 dBi
Antenna beam width 360 degrees
Output power 100 mW EIRP (20dBm)
Interface 10Base- T RJ-45 LAN port
Receiving sensetivity (dBm)

1Mbps
2Mbps
5,5Mbps
11 Mbps

   Firmware upgrade Upgrade firmware through TFTP
Upgrade frirmware through serial
Security

Password protection
MAC filtering
Hidden SSID broadcast
64 / 128-bit WEP encryption
WAP for 802.1x and WPA-PSK
WAP2 / IEEE 802.11i

   IP auto-configuration DHCP client
Management Web based configuration
Temprature range -10C to 55C



Physical specifications
Size lxbxh 14x19x5 (cm)
Weight 1 kg
Length crossover UTP cable 1 m



The Wandy ST530 kit contains:
2APi unit Antenna Documentation Quickstart manual
POE adapter Power cable 1,5 meter crosscable POE inserter unit

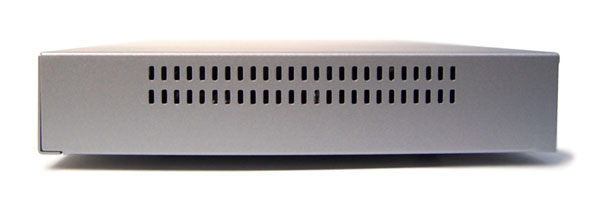

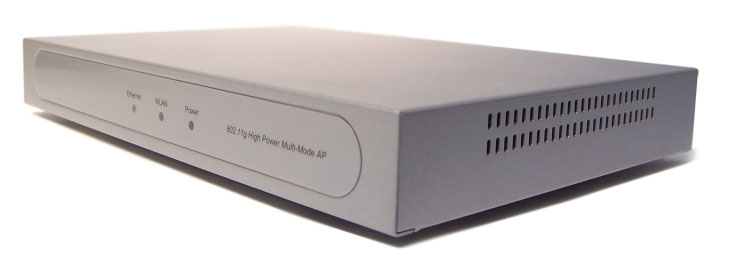

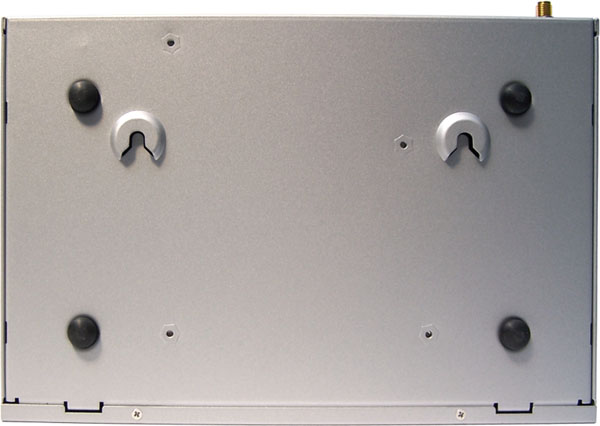

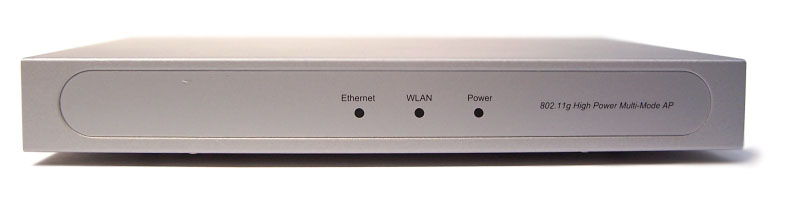

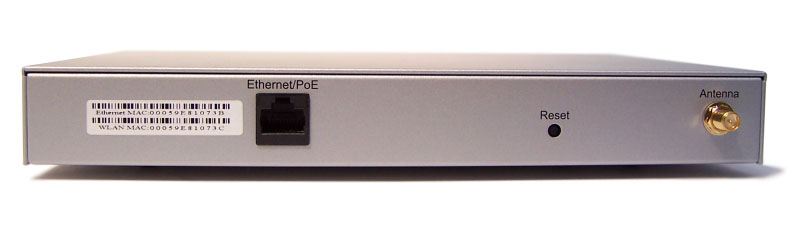

Views:
